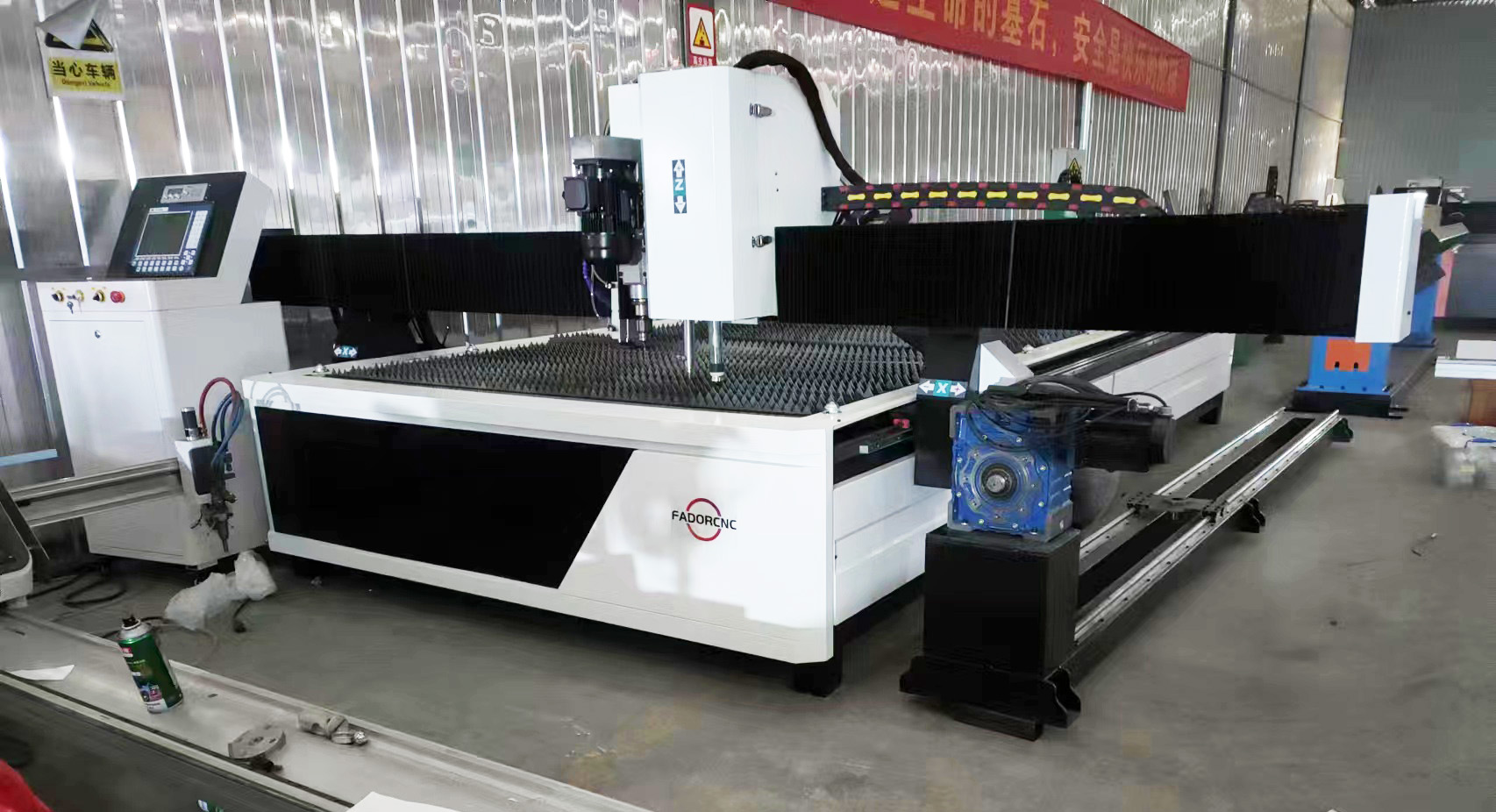

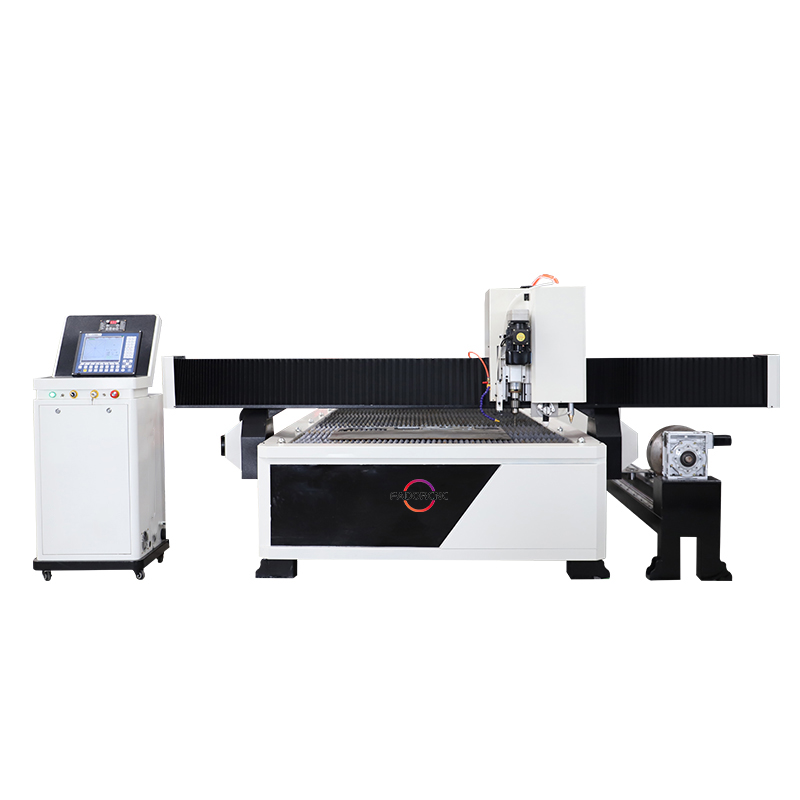

cnc plasma cutting machine
cnc plasma cutting machine/desktop cnc plasma cutter ,metal cutting machine
1 | Model | FAP-1530 |
2 | Processing material | Iron plate, carbon steel, stainless steel, aluminum, etc other metals |
3 | Effective cutting range(mm) | 1500*3000mm |
4 | Z working area | 150mm |
5 | Cutting mode | Plasma /Flame cutting |
6 | Plasma Power source | Hypertherm /Huanyuan brand |
7 | Cutting thickness(mm) | 0~170mm |
8 | Cutting speed(mm/min) | 12000mm/min |

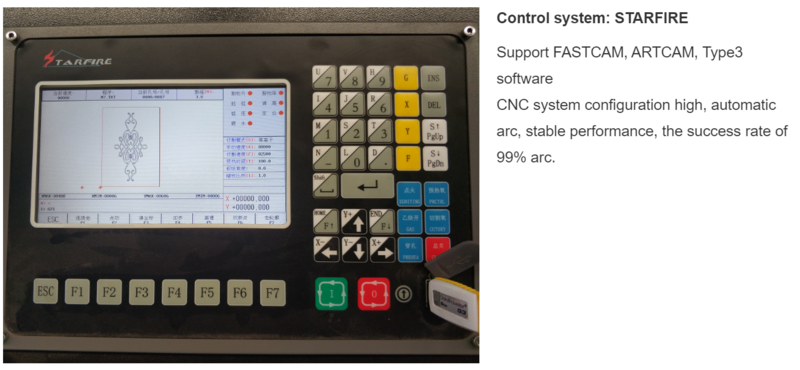

9 | Cutting system | STARFIRE |

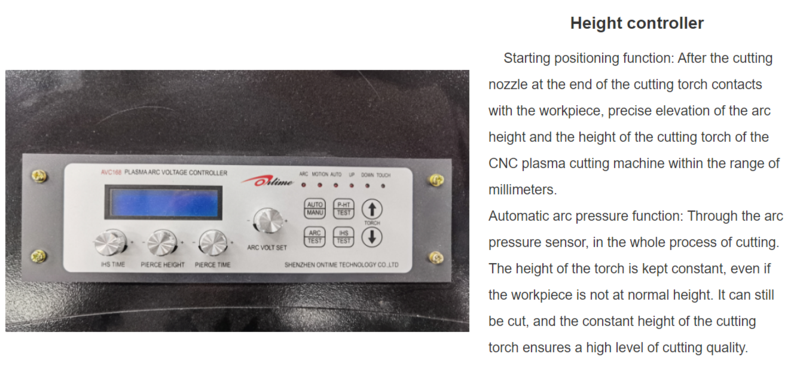

10 | Torch Height Control(THC) model | Automatic High Control THC |
11 | Software | StarCAM/Fastcam |

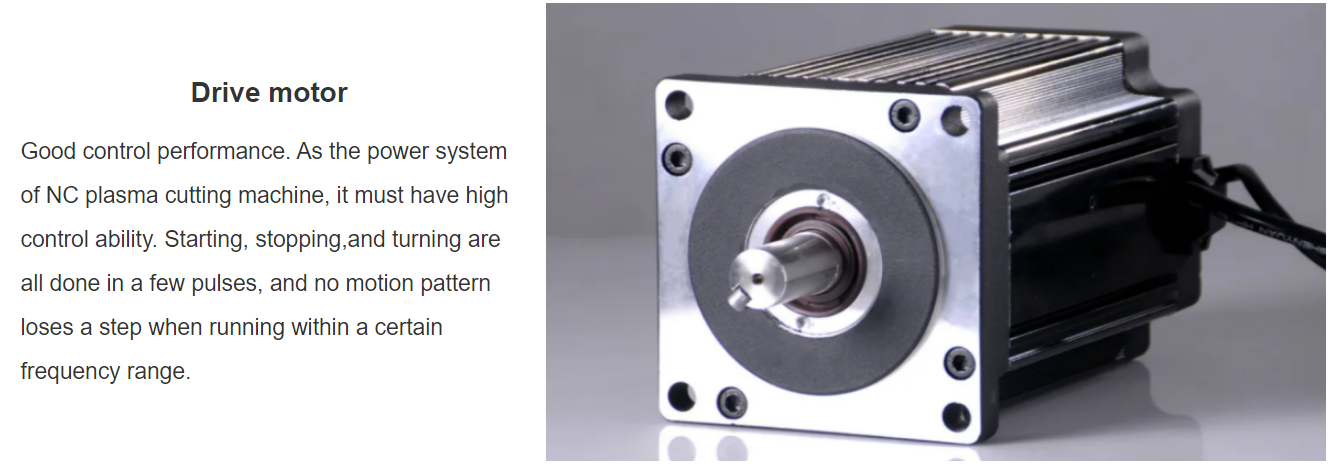

12 | Motors | Stepper motor/Servo motor |
13 | Emergency stop | Standard |
14 | LCD Display Dimension | 7.0Inches |
15 | Move precision | ±0.1mm/m |
16 | Input Voltage | 380V three phase |
17 | Power | 8.5kw |
18 | Type of gas needed | Air |
19 | Gas pressure | Max.0.8Mpa |
20 | Working temperature | -10°C-60°C. Relative Humidity, 0-95%. |
21 | Total weight(KG) | 2150KG |
22 | Packing size | 3700mm*2100mm*1650mm |
23 | Voltage | 3phase 380V/220V |
Advantage:
The beam uses light structural design,with good rigidity structure, lightdeadweight .
The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Zaxis all use dual-straight rail that make the machine driving smoothlywith high-precision.
Aiming at cutting three dimension LED character, trough metal panelsand floor cutting, the accuracy can reach good indicators.If it equippedwith United States HYPERTHERM plasma source the machine can reachthreshold.
Equipped with other advertise equipment (blister/engraving machine)Improve the efficiency of several times
Cutting mouth is small, tidy,and avoid a second dressing processing
It can apply to iron sheet, the aluminium sheet, the galvanized sheet,hundred steel plates , metal plates.
The numerical control system disposes high, the automatic striking arc,the performance is stable.
Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 producestandard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents.

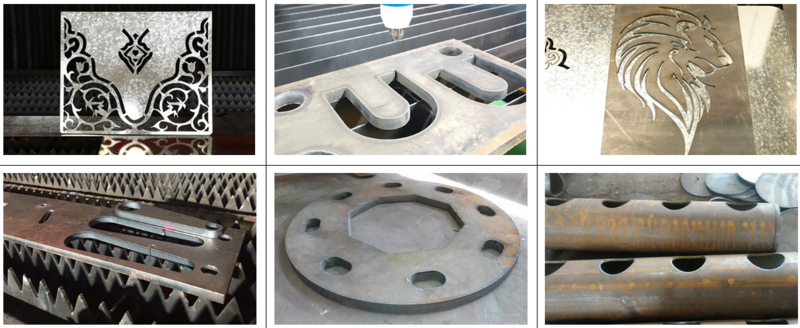

Application:
Features of plasma cnc cutting machine
Max cutting speed can reach to 18m per minute while precision keep within ±0.3mm. Adopting combination of rivet weld and assemble for machine structure to avoid deformation of machine.
Less and tidy incision, no cutting slag or need of after treatment.
Applied for mild steel plate,aluminium plate, galvanizing plate,titanium plate and so on.
High configuration for numerical control system, stable performance. Automatic arc striking can reach to 99% success rate.
Plasma power and cutting torch adops Chinese famous brand which gains national patent.
Can be used together with other advertising equipment(Blister machine,grooving machine,bending machine) to build production lineof metal character.
Supporting G-code file either generated by ARTCUT, CAXA, ARTCAM, Type3 software or DXF format generated by other software.Control system adopts U disk swapping processing.
Positioned by laser modules. High positioning precision and humanization design.

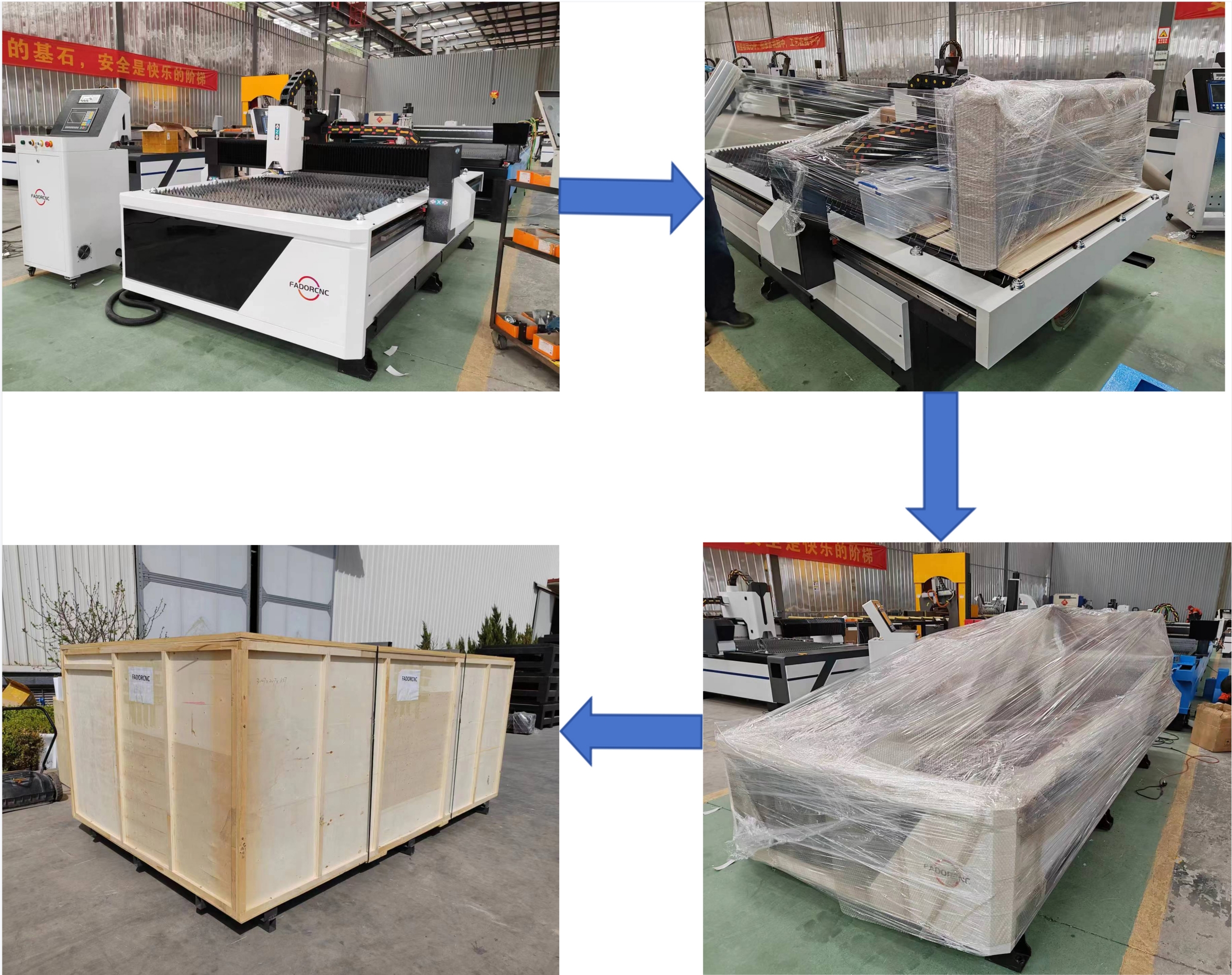

Package :
FAQ
Q1. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,CAD,AUD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Q2. If we don't know how to use the machine,can you teach us?
Yes, We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn
how to use it, we can help you by "Teamviewer" online helpsoftware.Or we can talk by phone, email or skype
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
Q4.How long is the Production time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to client's specific requirements, it would be 7 to 10 days.
Q5: Before sending me an inquiry on our machine, it is better for you to provide me the following information
1)Your cutting size. Because in our factory, we have different models according to working area.
2)Your materials: Carbon steel, stainless steel , aluminum, or other material
3) what’s your cutting thickness?
We will recommend suitable power source to you according to your cutting thickness
