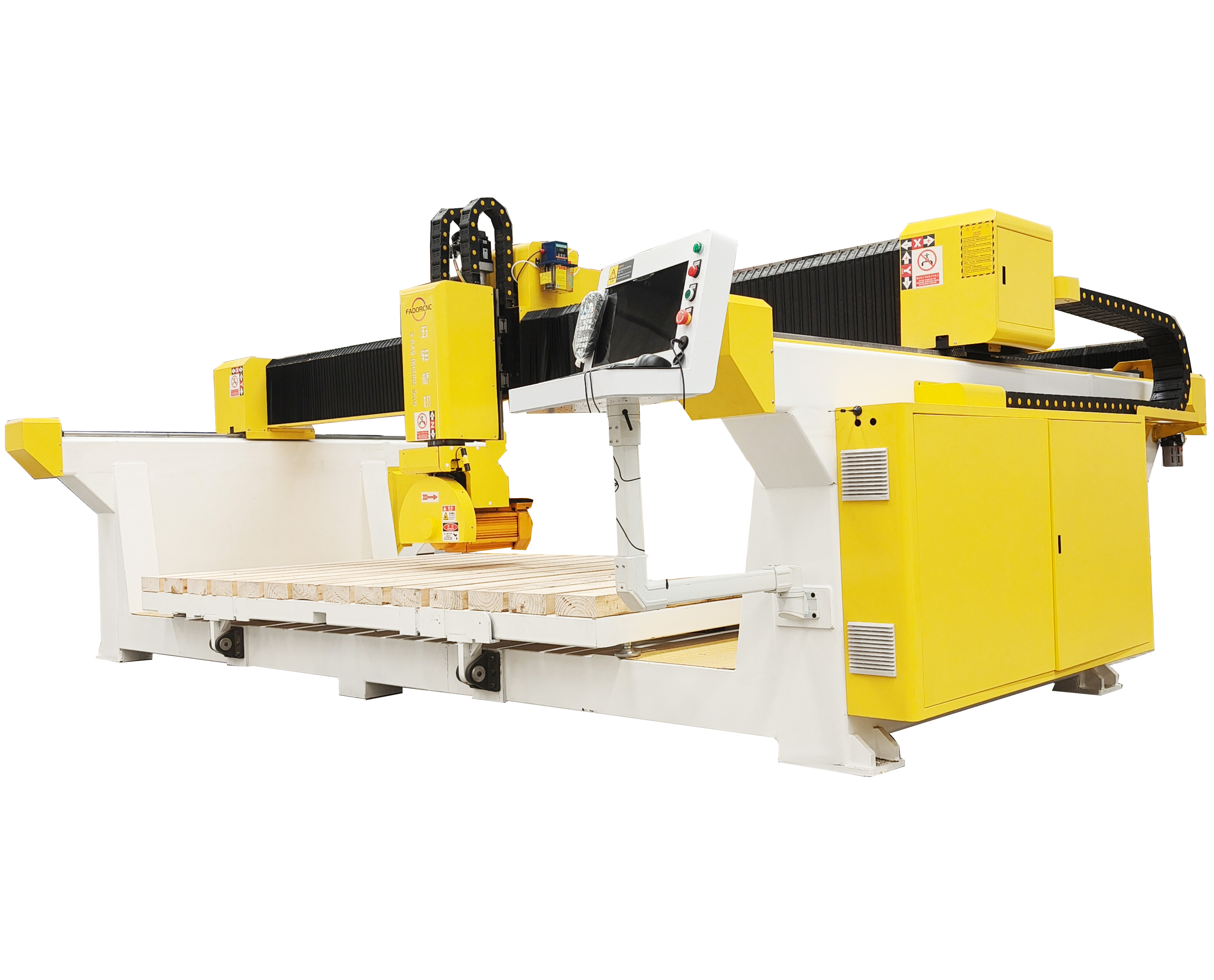

5 Axis automatic stone cutting machine/cnc granite cutting machinery Bridge Saw for granite/stone/marble/quartz

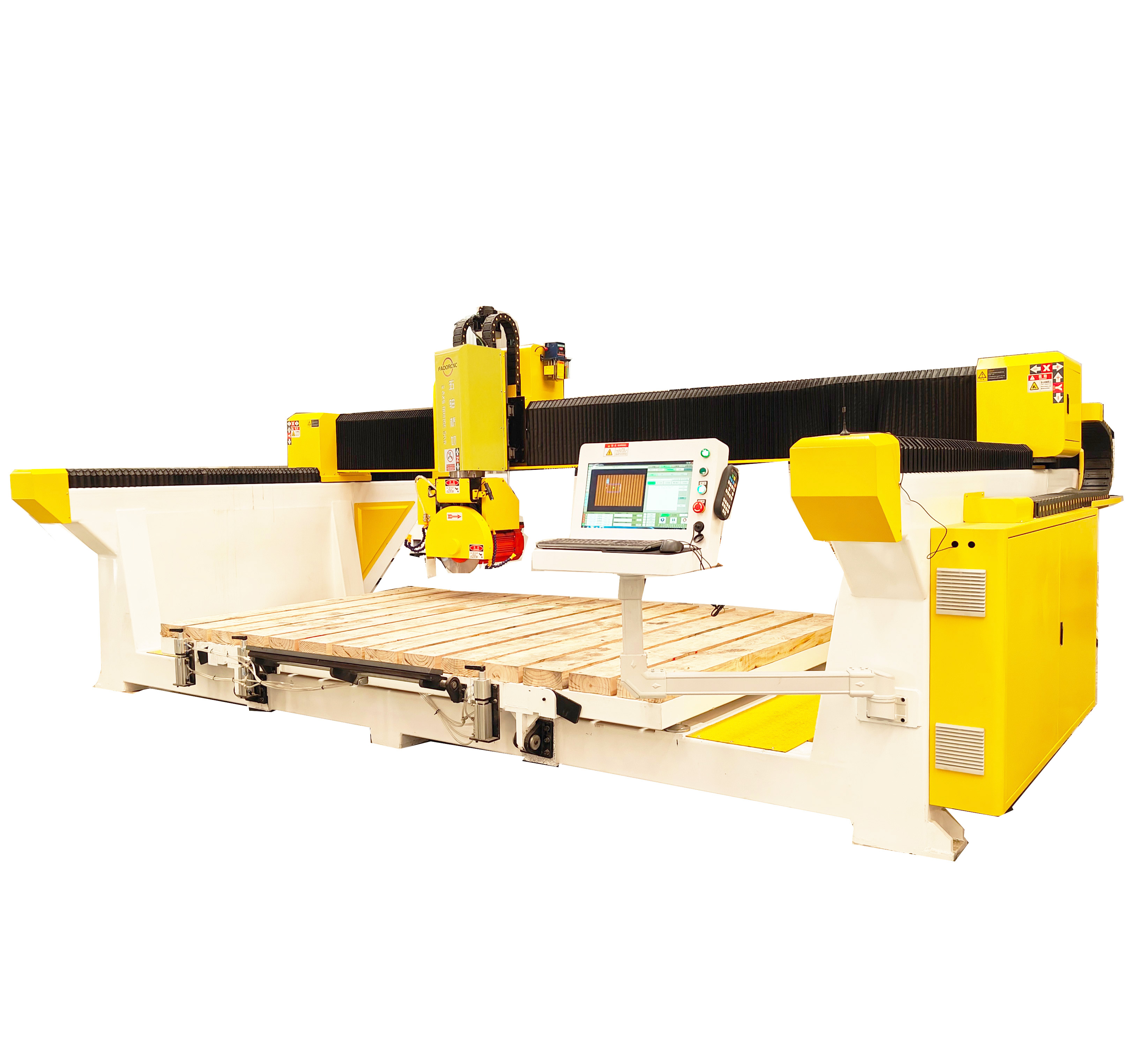

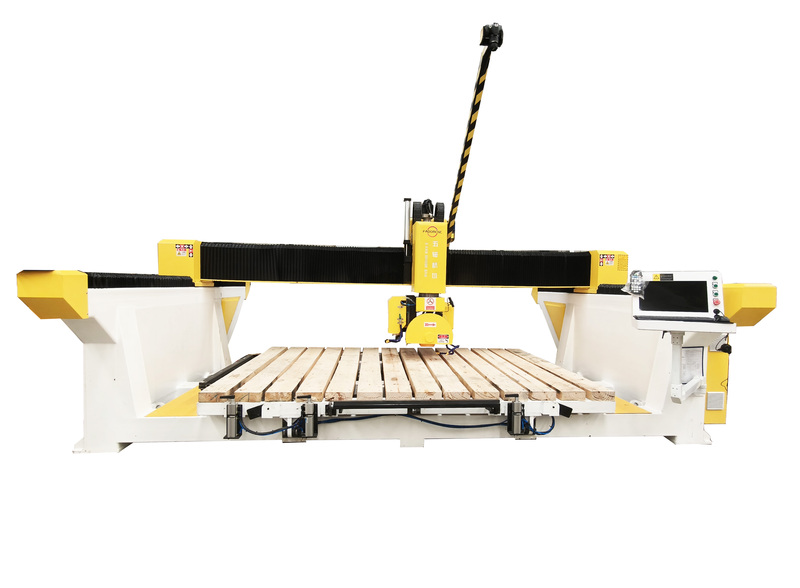

Main Features
1) Monoblock structure for easy move, installation and no foundation needed.
2) Small covering area: 5.5mx4.0m, save space
3) Linear guide in X/Y/Z axis to gurantee pefect cutting accuracy.
4) Z-axis movement by lead screw.
5) 0°- 360° automtaic head rotatation and blade positioning.
6) 45° blade tilt auto for mitre cut.
7) Worktable can tilt 0-85°, easy for slab loading.
8) Pre-loaded parametic figures such as hexagon, octagon, kitchen top, trapezium, polygon, etc.

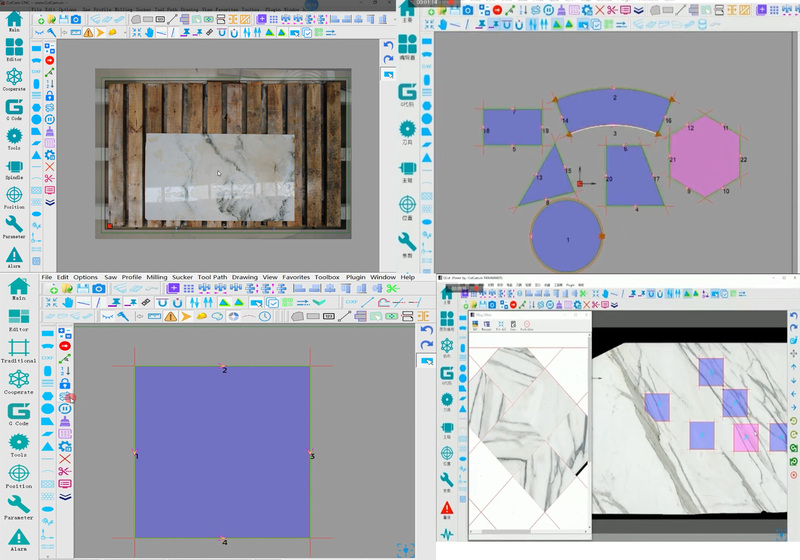

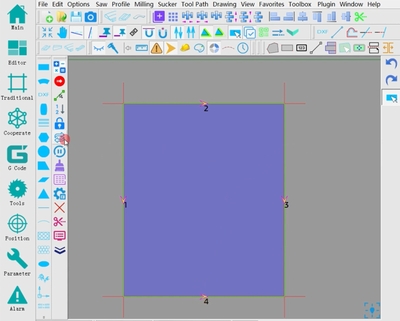

Control system-CUTCAM Easy Operation: Can easy edit/Read anydrawings/.DXF drawing. | |
 | Linear Guide Quality linear guides fitted withrecirculationg ball sides used on crossbeam(X axis),carling (Y axis)and Zaxis to gurantee perfect cutting accuracyand long lifespan. Guide rail for crossbeam and side beam isoil-immersed. |

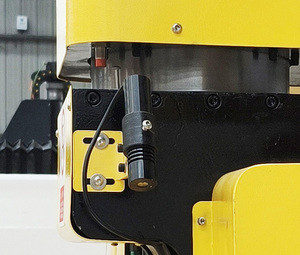

| Laser Reticule Apparatus Origin: China Laser alignment device mounted on thehead sians the blade's cutting line |  |

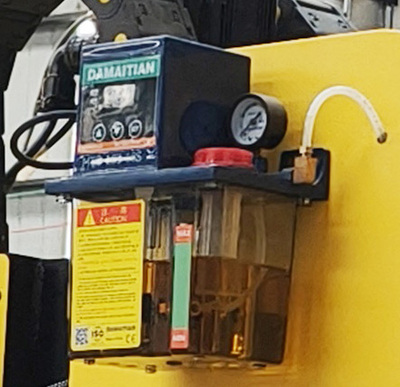

 | Auto Lubricating System Automatic oil feedingand lubrication system makes the regular maintenancevery easy and reduce waste. |

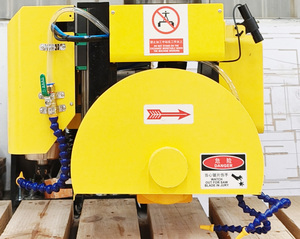

| Make vertical. 45° Miter Cut with Disc Blade & Make Sink cutting. such as undermount sink cut out. Engraving, Polishing, Milling etc with Extrahigh speed spindle. |  |
 | Bus Absolute Value Servo Motor & Driver Absolute Servo> Servo>hybrid Servo>Step. Higher accuracy, Powerful, more torque. |

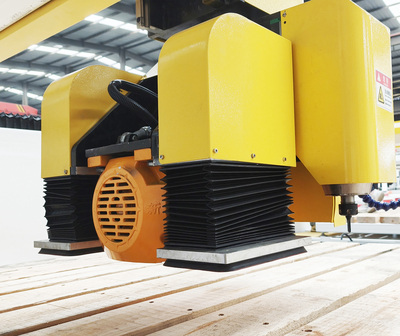

| slab holder. Avoid slab movement when we need processing small size & lightweight slab. Auto Holder when we need Spindle working. Also can manual control to holder slab. |  |
 | camera function :Using a industry camera, the processed plate is presented in the system,you can clearly see the direction and position of the pattern you want to work one.The camera takes pictures, which greatly saves time in drawing. |
| Suction cups for auto slab movement,Easy to moving . |
|

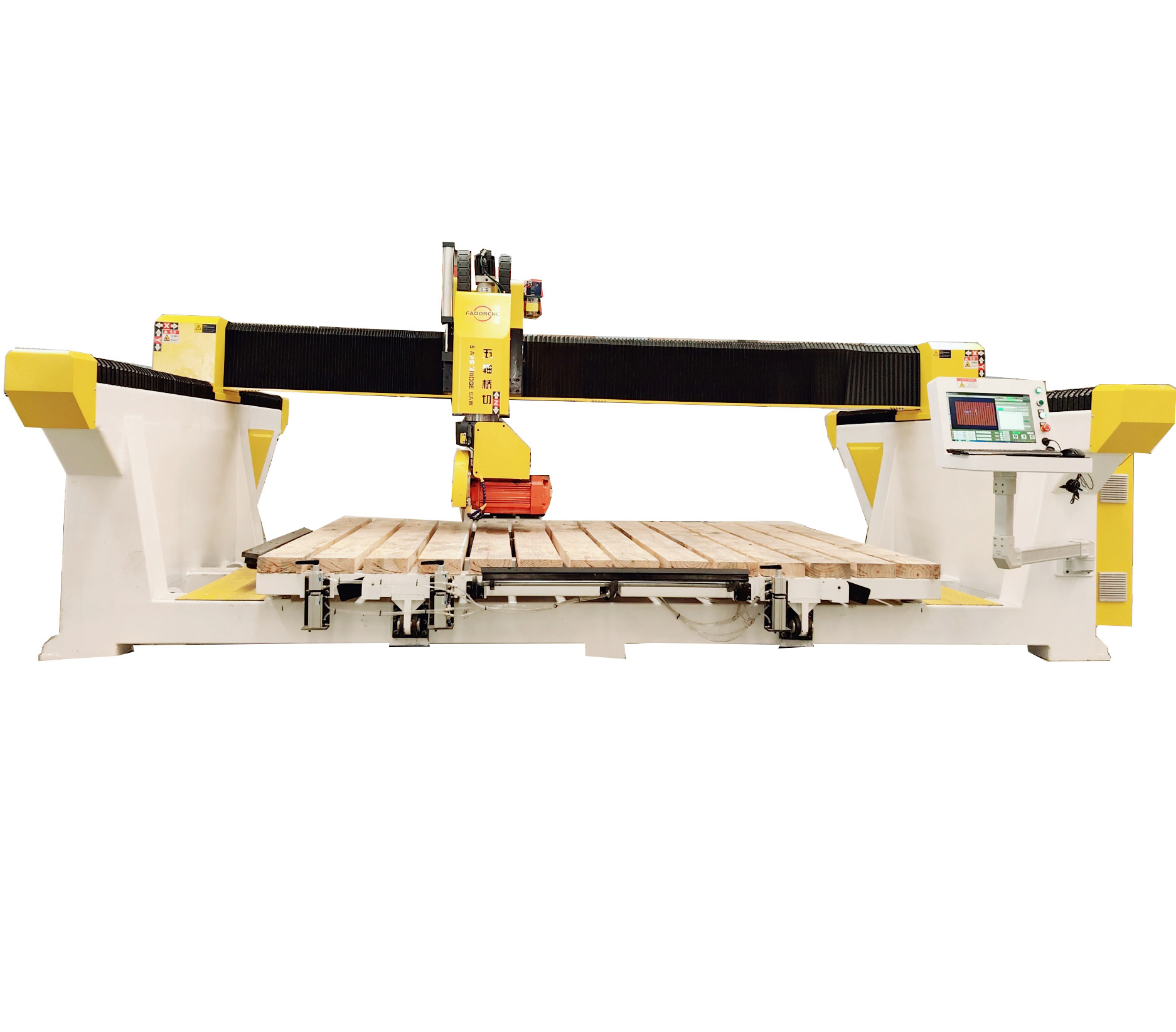

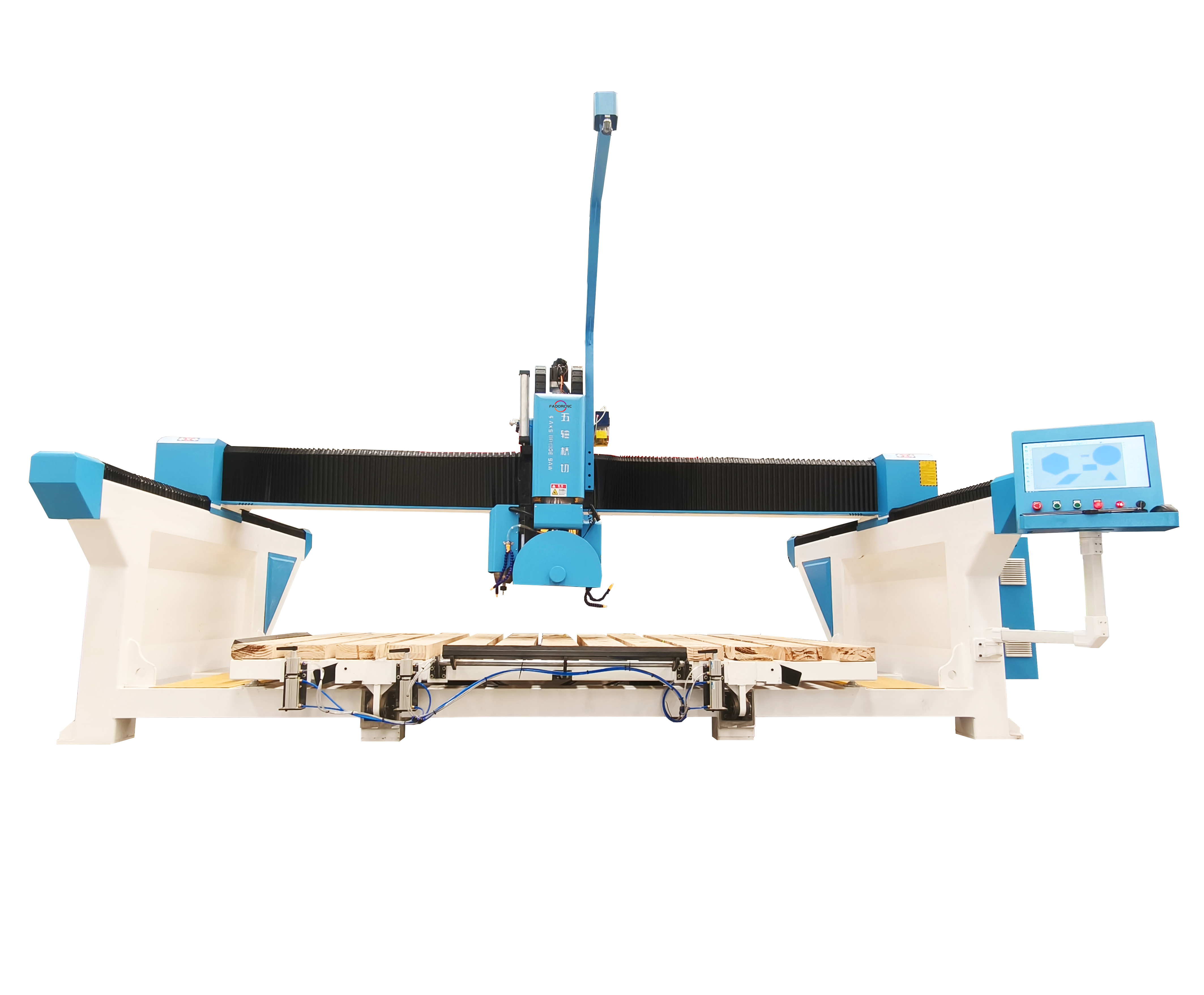

FAS-B 5 axis CNC bridge saw cutting machine | ||
Working travel | X, Y, and Z | 3300*2000*400mm |
C axis | ±360° | |
A axis | 0-90° | |
Low-voltage electronics | Xaxis | 30m/min |
Yaxis | 30m/min | |
Zaxis | 15m/min | |
Servo motor | XYZAC | All with servo motor ,Z axis with brake |
Guide rail | X, Y, and Z Taiwan Hiwin | |
Rack | X,Y | 2MT-WIN |
Saw motor | 7.5KW,11KW ,15KW ,18.5kw 22 kw rated: 4000r/min | |
Control system | Customized system with PLC ,keyboard ,Mouse(built-in CAM software) | |
Programming method | CAD image input & Manual programming | |
Water consumption | 2 m3/h | |
Diameter Blade saw | 400mm/500mm/600mm | |
Gross Weight | 5000kg | |
Package Dimension (L x W x H) | 5500x2200x2200 | |
Cutting Mode:
1) Left cooking bench, Right cooking bench, 2) Chamfer, Routine, 3) Polygon, Trapezoid, Rhombus,
Pull-grid 4) Horse-tripe, Ellipse, Circle, Sector,5) Optional -- Line - Profile, Arc - Profile
